Key Features at a Glance

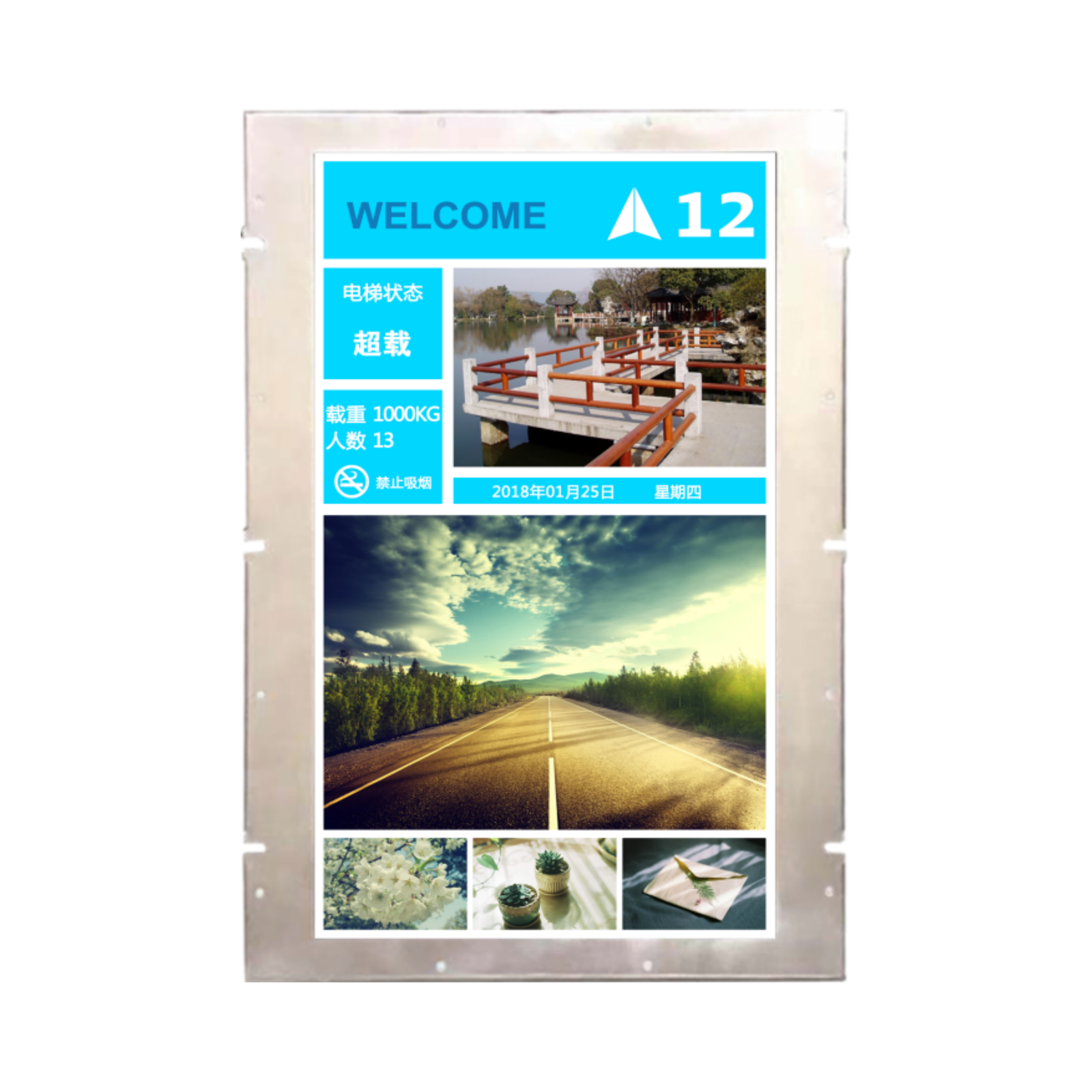

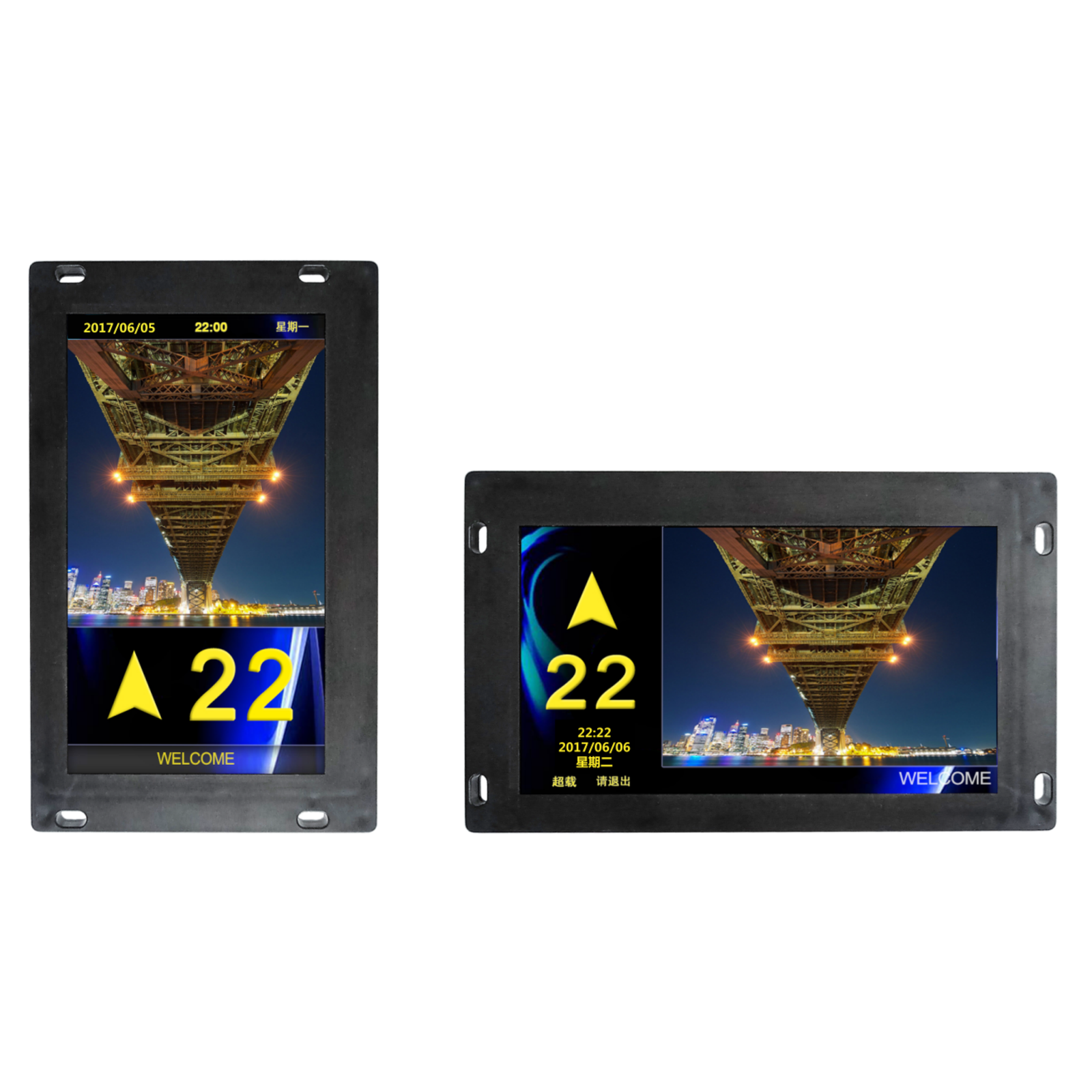

- Multifunctional Interface: Simultaneously shows floor number, direction arrow, load status, date/time, welcome message, and custom images/videos.Dynamic Backgrounds & Ads: Upload your own photos, videos, or promotional banners — turn idle time into marketing opportunity.Real-Time Status Alerts: Automatically triggers warnings like

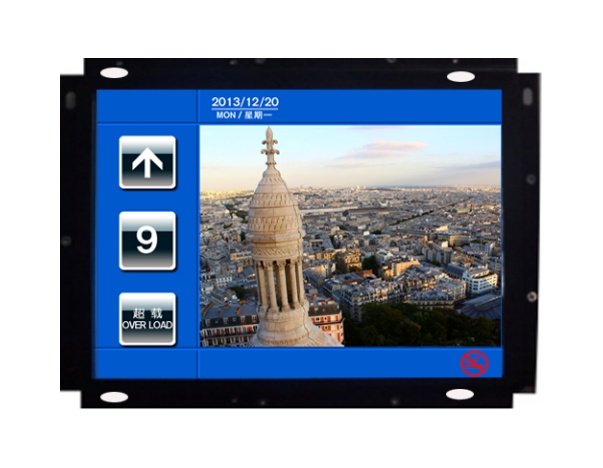

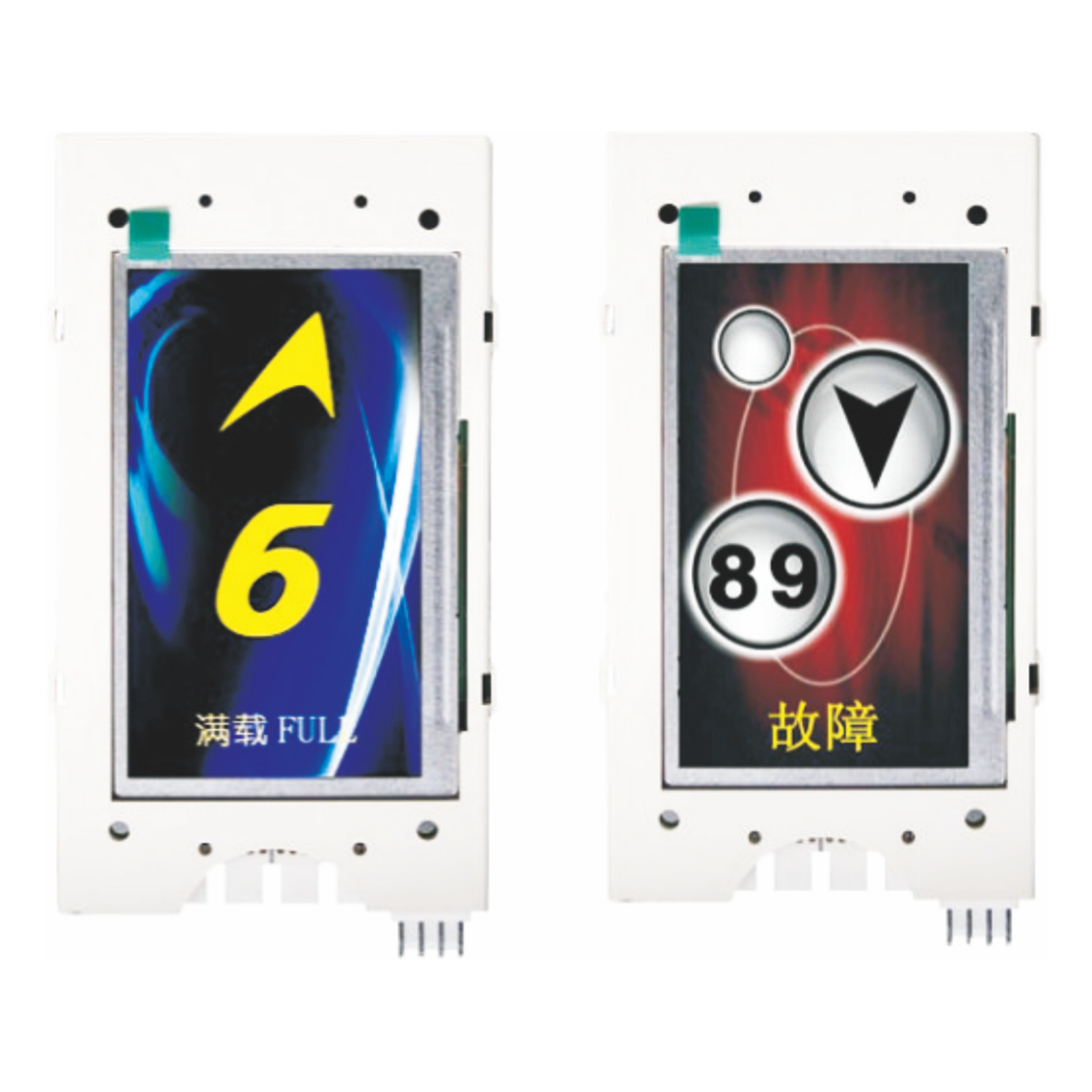

OVERLOAD,FULL,FAULTwith bilingual text (Chinese + English).Customizable Layouts: Drag-and-drop interface designer lets you arrange blocks: top bar, side panel, main image, footer ticker.Remote Content Management: Update display content via USB, Wi-Fi, or cloud platform — no need to visit each elevator.Wide Compatibility: Works with Otis, Schindler, Kone, Mitsubishi, ThyssenKrupp, and generic controllers via RS485/CAN/TTL.Industrial-Grade Build: Metal frame options available; anti-glare screen; operates in -20°C to +70°C environments.Plug-and-Play Installation: Pre-configured firmware; DIP switches for address setting; minimal wiring required.
Technical Specifications
| Feature | Specification |
|---|---|
| Screen Size | 7" ~ 15.6" (Customizable) |
| Display Type | IPS LCD / TFT with LED Backlight |
| Resolution | 1024x600 / 1280x800 / 1920x1080 (Full HD option) |
| Touch Option | Capacitive touch available (for interactive kiosks) |
| Color Depth | 16.7M true color |
| Content Sources | USB flash drive / SD card / Ethernet / Wi-Fi / Cloud CMS |
| Supported Formats | JPG, PNG, BMP, MP4, AVI, GIF, TXT, RSS feed |
| Communication | RS485 / CAN / TTL / TCP/IP (optional) |
| Power Supply | DC 12V / 24V (wide voltage input) |
| Operating Temp | -20°C to +70°C |
| Mounting Style | Wall-mount, flush-mount, bracket-mounted, metal bezel optional |
| Certifications | CE, RoHS, FCC, IP54 (dust/water resistant option) |
Why Choose Our Elevator Displays?
- Direct Manufacturer: Competitive pricing with no middleman markup.
- OEM/ODM Services: Customize the logo, frame color, and software interface to match your brand.
- Fast Sampling: Get a working sample within 3-5 days for testing.
- Global Shipping: Secure packaging and reliable logistics to any destination.
- Lifetime Support: Dedicated technical team for remote installation guidance and troubleshooting.
Ready to Upgrade Your Elevators?
Whether you need a single unit for a retrofit project or bulk orders for a new construction, we have the solution. Contact us today for a free quote and product catalog.
